EXIMIO is a system used to prevent fires and dust explosions within process industries where inflammable material is handled. The Eximio-C Control unit is the monitoring device for all new Firefly Systems. The control unit and its graphic user interface Eximio IntuVision™ are designed to be clear, informative, and user-friendly operation. This will be the main resource to track and control both types of systems: Preventative – Spark Detection or Protective – Quick Suppression. The unit displays all detectors and extinguishing devices on its IntuVision screen. The system can electronically monitor items in its network. The Firefly Control System is a modular and decentralized system. The system is connected with remote support. For large systems, there is the possibility to add more screens within a network. The system includes an Application View, detailed information of detectors (including temperature and humidity), a logbook of events specified in milliseconds, statistic module, etc. The unit has an integrated power supply with battery backup. The controller has analog and digital inputs for the sensors and transmitters, as well as relay outputs for control and interlocking of the process. The Eximio Controller also features InfoLed™, LED indicators at the bottom right of the unit to indicate the status of the system with different colors. The EXIMIO system also consists of new purpose-built monitoring, Firefly ProAct™ technology which is a new patented feature of EXIMIO. It collects and analyzes advanced data, and can activate precaution measures to avoid a fire or dust explosion to spread within the process.
-

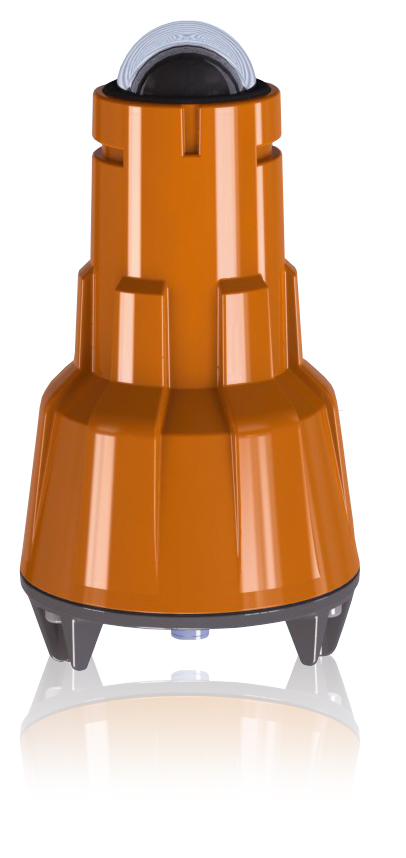

The HD detector is a part of Firefly system generation Eximio. The HD detector is programmed to spot ignition sources before a fire or explosion has occurred to prevent any damage in an industrial process. The detectors can be placed in various applications with pneumatic ducting or fall chutes. The HD detector is configured to signal based on the Minimum Ignition Temperature (MIT) / Minimum Ignition Energy (MIE) of the material handled. This is a passive IR detector. In order to prevent false triggering, the HD detectors are insensitive to daylight. The detector has Multi-Checkpoint™ technology to ensure efficient detection. As the passing ignition source is traveling through the pipeline the hot particle will be sensed 3 times before detection is approved. The sensor has two IR test diodes which automatically tests function and sensitivity during normal operation without affecting the detector's capability. A key feature is Firefly DualEye™ technology to enable a full 180° view angle per detector. Part of the Eximio InfoLed™ system, at the bottom of the detector housing, there are color-coded LED lights to indicate the current status of the system.
-
The Interceptor-BD (Blast Deflector) is an accessory to CV Technology explosion or deflagration vents. It is designed to deflect the flame ball exhaust and reduce the safety area near explosion vents. Explosion or deflagration vents exhaust a flame ball during a deflagration. That flame ball can extend to distances in excess of 60 feet (18 m) which requires a very large safety zone. Safety zones can limit the accessibility to process area or create limitation in the layout of process equipment. The I-BD is designed to direct the flame ball exhaust from occupied areas and thereby moving the safety zone.
-
The Interceptor®-EV® is a NFPA compliant flameless venting device. Specially designed with a slim, elongated profile this flameless vent is ideal for bucket elevators and conveyors where installation locations are limited. The lighter frame is painted carbon steel with a stainless steel mesh insert. The compact design allows for easier handling and installation. Comprised of both the flame arrestor and explosion vent the Interceptor®-EV® can be rearmed in the field. The standard TLFG model explosion vent allows this flameless vent to be used on variety of difficult applications including bucket elevators, conveyors, and small vessels.
-
The Interceptor®-LT® is a NFPA compliant flameless venting device. Designed as an economical solution for flameless venting the I-LT features a painted carbon steel frame with stainless steel mesh insert. The rectangular cross-section allows for maximum vent area and sleek installation. Comprised of both the flame arrestor and explosion vent the Interceptor®-LT® can be rearmed in the field. The standard TLFG model explosion vent allows this flameless vent to be used on variety of difficult applications including pneumatic conveying, dust collection, dryers, bucket elevators, conveyors, and silos.
-
The Interceptor®-QR® is a NFPA compliant and FM Approved flameless venting device. Often referred to as a quench tube, round style flameless vents offer the advantage of optimum venting efficiency to handle all applications. Dusts approved for the Interceptor®-QR® include organic material, melting, fibrous, and light metal dusts. Comprised of both a stainless steel flame arrestor assembly and an explosion vent the Interceptor®-QR® can be rearmed in the field. A variety of different explosion vent models can be used on the Interceptor®-QR® including USDA dairy certified models. The standard TLFG model explosion vent allows this flameless vent to be used on variety of difficult applications including pneumatic conveying, dust collection, dryers, and silos.
-
The flame detectors are used for extremely rapid detection in Protective, Quick Suppression Systems. The UVIR detectors are optically based, self-contained, microprocessor-controlled, ultraviolet/infrared (UV/IR) and high-speed ultraviolet (UV) flame detectors designed for the Firefly Eximio system. The patented TrueDetect™ technology minimizes false alarms. The flame detector can be used in open or closed areas, it registers the UV and IR light emitted from material burning. The detectors use FEA (Fire Event Analysis) recognition technology to distinguish between radiation from hazardous flames even with a lit room. They can be used in applications with sudden fires from hydrocarbon fuels or when proper options are selected, from specified non-hydrocarbon fuels, may occur. These detectors can be paired with various mitigation options (including water mist nozzles, abort gates, CO2 gas system, slide gates, etc.). The IR flame detector is equipped with an automatic self-test feature that verifies the proper function of the electronics, sensors, and optical surfaces. The detectors are approved for both indoor and outdoor installations. Previous CUE systems had the OAD detector which is now referred to as the UVIR detector; both are fully functional with the new Eximio system. The response of detection is less than 1 second.
-

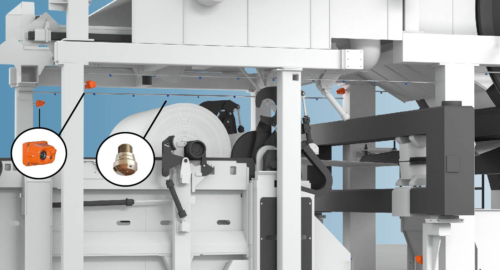

The Firefly Water Mist System is paired with Flame Detection and the Eximio Control Unit for quickly suppressing hot particles. This system is used for high-risk and critical machines. The water mist system rapidly extinguishes while utilizing small volumes of water. They can be used in open or enclosed areas. The Firefly Quick Suppression System uses the same Eximio controller as the Spark Detection System, so there is the option to combine both prevention and protection, to achieve an optimized system functionality. After flame detection, the hydraulic water mist system can suppress the flame within 0.3 to 3.0 seconds. The system can supply water for over 10 minutes.
-
Used for spark detection systems, the water spray nozzles prevent fire and explosions before they occur. They are paired with passive IR detectors and an Eximio Control unit. They are made of brass and are offered with different water pressure speeds. The water spray nozzle system has PowerImpact™ Extinguishing, which can cover ducts and chutes up to 98” in diameter with a velocity up to 164 ft/s. The reaction time for the water spray, after detection is less than 70 ms. The full cone water spray nozzles have a spray angle of 110° each. The nozzles release large water droplets for momentum and penetration. The system includes quick release and flexible hoses, which make it simple to test the system without releasing water into the process.
